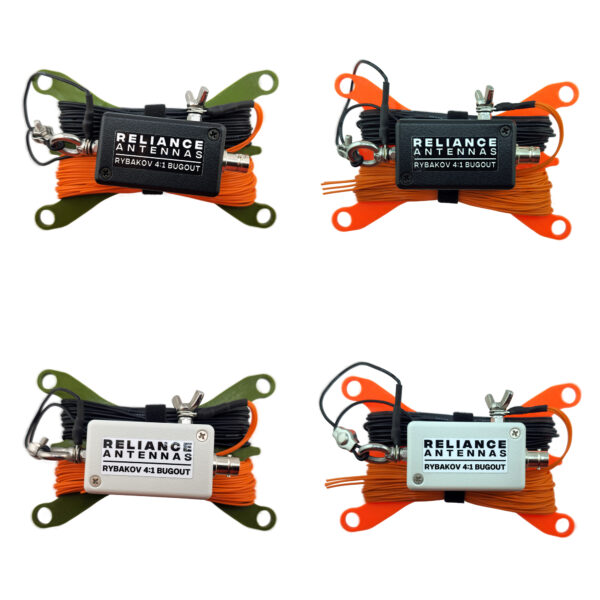

Rybakov 4:1 Bugout Vertical 40-6M Antenna

Description

Reliance Antenna’s Rybakov 4:1 Bugout vertical antenna is a highly efficient, space-saving HF solution designed for operators who want solid performance across the 40, 30, 20, 17, 15, 12, 10 and 6 meter bands (tuner required) without a large footprint or complex setup.

Using the proven Rybakov vertical design with an integrated 4:1 impedance transformer, this antenna provides wideband coverage with smooth matching characteristics, making it ideal for portable, temporary, or restricted installations. The vertical polarization delivers a low takeoff angle, helping your signal get out efficiently for both regional and DX contacts.

• 100 watts SSB / 60 watts Digital / CW
• 4:1 Rybakov Transformer
• Durable ABS Plastic Case IP54 & UL94
• Quality BNC Bulkhead
• All Stainless-Steel Hardware
• Ring Eye Nut for Strain Relief and Hoisting into Tree or Antenna Mast
• Counterpoise Lug for Included Four 17′ Counterpoise Wires
• 25′ Antenna Wire

Requires an ATU (Antenna Tuning Unit)

Whether you’re setting up in the backyard, on a mountaintop, or at a campsite, this compact Rybakov 4:1 vertical antenna delivers reliable multiband performance in a practical, easy-to-use package—proof that effective HF operation doesn’t require a large antenna system.

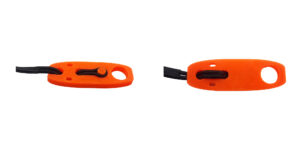

Includes the new Reliance Wire Ends!
